MPPT Controller On Grid Solar Power System Inverter For Power Station

Name: MPPT Controller On Grid Solar Power System Inverter For Power Station
Brand: zzlysun
Price: 0.23 USD

China MPPT Controller On Grid Solar Power System Inverter For Power Station wholesale

Place of Origin : Henan, China

Brand Name : zzlysun

Model Number : 50kw/110kw on grid

Packaging Details : Plywood Case

Supply Ability : 10 Carton/Cartons per Day

MOQ : 40000 watts

Price : $0.23/watts 40000-199999 watts

Warranty : 5years

Free installation service : NO

Application : Home

Solar Panel Type : Monocrystalline Silicon

Battery Type : NONE

Controller Type : MPPT, MPPT

Mounting Type : Ground Mounting

Load Power (W) : 50kw, 30KW, 36KW, 40KW, 110kw, 100kw

Output Voltage (V) : 230V/400V

Output Frequency : 50Hz/60Hz

Work Time (h) : 12

Certificate : TUV/ISO/IEC/BIS

Pre-sales project design : Y

Max. DC voltage : 1100V

MPP voltage range : 200V-1000V

No. of MPP trackers : 5/9

No. of PV strings per MPP tracker : 2

Max. input current per MPP tracker : 26A

Max.short-circuitcurrentperMPP tracker : 40A

Rated power : 50kw/110kw

Solar panel : Mono Crystalline

Nominal AC voltage : 3 / N / PE, 230 / 400 V

Port : Shanghai/Ningbo/Qingdao/Guangzhou

Contact Now

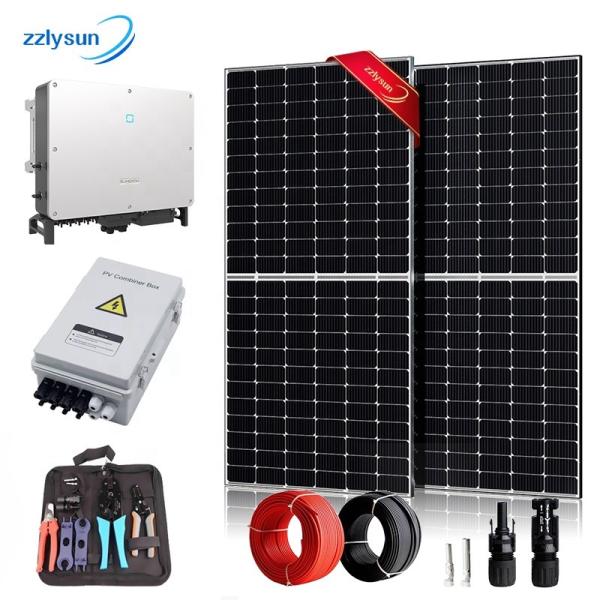

SUNGROW Solar inverter 50KW 110KW on grid solar energy system for power station

MPPT Controller On Grid Solar Power System Inverter For Power Station

❖ General mode:

Commercial on grid solar system is suitable for the solar powr plants ,which the power from PV Array will be provided by the load,the excess electric can be fed to the grid,it is suitable for the country which the local grid is stability.

MPPT Controller On Grid Solar Power System Inverter For Power Station

Product List	50kw on grid solar	110kw on grid solar
PV module	550w*90pcs	550w*200pcs
PV combiner box	6 Input 6 output	10 Input 10 output
Inverter	Growatt on grid 50kw	Growatt on grid 110kw
Monitor	Wifi Module	Wifi Module
Battery	No	No
Mounting System	Roof mounting/Ground mounting (Design by your requirement)
Accessories	MC4 Connector,PV cable,Installations

❖ Solar Panel

* Power:540~560W

* The quantity of Cell:144PCS

* Solar cells size:182*91mm
* Dimensions:2279x1134x35mm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Container type:40HQ
* No. of modules per container:620PCS
* No. of modules per pallet:31PCS
* No. of pallets per container:20
* Packaging box size (LxWxH)[mm]:2300x1145x1260MM

❖ On Grid Solar Inverter

* Rate Power: 50KW/110KW
* MPP voltage range:200V-1000V
* AC Voltage Regulation:220V/380V,

* AC grid frequency:50Hz/60Hz
* AC voltage range:320 – 460V

* MPPT Efficiency :99%
* AC grid connection type:3W+N+PE
* Nominal voltage:585V
* No. of MPP trackers:5pcs/9pcs
* Max. input current per MPP tracker:26A

❖ Accessories

* PV Combiner Box
(Anti-reverse/SPD/Fuse/Busbar
/Breaker 63A1000V)

* MC4 Connector
Rated current: 30A Rated voltage: 1000VDC

❖ Accessories

* PV DC Cable

4mm2 or 6mm2

* Installation tolls
Wire Crimper, Stripper, MC4 Connector Wrench

❖ Mounting Bracket

* Good Appearance
* Easy and flexible installation.

* Diversified design
* Light dead-weight
* Save installation materials

PROJECT CASE

❖ Advantage

Commercial on grid soar system are suitable for the country,which are the payment bill is expensive .It can save the pay bill without the battery investment ,the excess electric can fed to the grid for earnings.

❖ Company

The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!

❖ Quality gurantee

The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.

❖ Plywood Package

The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!

❖ Certificate

1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.

2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.

FAQ

1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.

2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.

3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.

4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us know freely.

5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your payment.
